Cruise 2010-13, 5 - 22 June 2010
Cruise description
This cruise was very successful. The June cruise is traditionally the "mooring cruise", and so two moorings were recovered and two were deployed, all around Station Papa. We also deployed two Argo floats for IOS/DFO and one Iridium float for the University of Washington. The in situ pumping for Roger François' group at UBC went quite well and was well complemented by the Multiple Plankton Sampler. The sampling done during this cruise was performed using a CTD, a Rosette, some Go-flos, a Bongo and a Multiple Plankton Sampler. For further details see Post_cruise_report.pdf in the documents section.
Cruise personnel
Chief Scientist: Marie Robert Institute of Ocean Sciences (DFO)
- Michael Arychuk (Institute of Ocean Sciences-DFO)
- Michael Bentley (Canadian Wildlife Service)
- Seth Bushinsky (University of Washington)
- Constance Couture (University of British Columbia)
- Michael Craig (NOAA/PMEL)
- Roger François (University of British Columbia)
- Keith Johnson (Institute of Ocean Sciences-DFO)
- Yiming Luo (University of British Columbia)
- Hugh Maclean (Institute of Ocean Sciences-DFO)
- Josiane Mélançon (Université Laval)
- Jessie Motard-Côté (Université Laval)
- Keith Ronnholm (PMEL/NOAA)
- Karl Schiffmacher (University of British Columbia)
- Maureen Soon (University of British Columbia)
- Doug Yelland (Institute of Ocean Sciences-DFO)
- Jody Wright (University of British Columbia)
Click on the cast types below to see at which stations the casts were done to access data.
CTD
Rosette
Zooplankton Tow
Trace Metal
Drifeters and Argo floats
Mooring

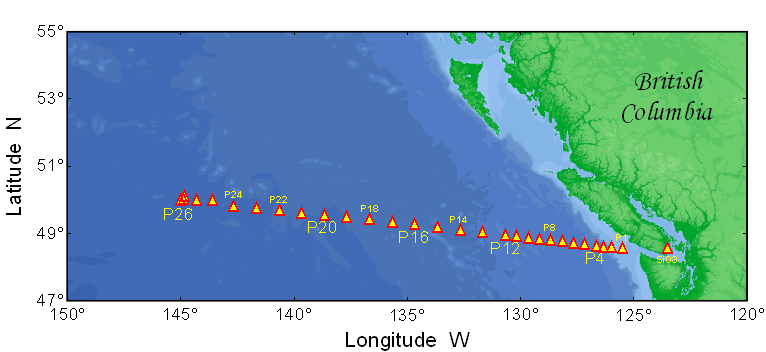

Table of stations and sampling done
- For HPLC data contact Angelica Peña
- For ONAr data contact Steven R Emerson
- DIC, Alk and pH data are being analyzed and will be available shortly. In the meantime contact Lisa Miller
- For the Trace Metal data contact Josiane Mélançon
- For the in situ pumps data contact Roger François
- For any question regarding the moorings contact Meghan F Cronin
- For a list of data available in the CTD files please refer to 2010-13-ctd-channels.txt
- For a list of data available in the Rosette files please refer to 2010-13-che-channels.txt
- Rosette data
- Ctd data
| Event | Station | Position | Date (UTC),Time (UTC) | Sampling |
| 1 | SI03 | 48°35.61 , 123°30.02 | 06-Jun-10 , 02:21 | Rosette to 218 dbar , ( Ctd data) |
| 2 | P1 | 48°34.46 , 125°30.08 | 06-Jun-10 , 23:49 | Rosette to 10 dbar , ( Ctd data to 127 dbar) |
| 3 | P2 | 48°35.99 , 125°59.90 | 07-Jun-10 , 01:59 | Rosette (DMS cast) to 101 dbar , ( Ctd data) |
| 4 | P2 | 48°35.97 , 125°59.85 | 07-Jun-10 , 02:27 | Bongo tow to 105 m |
| 5 | P2 | 48°35.98 , 126°00.00 | 07-Jun-10 , 02:45 | Rosette (Deep cast) to 107 dbar , ( Ctd data) |
| 6 | P3 | 48°37.49 , 126°19.92 | 07-Jun-10 , 04:36 | Rosette to 30 dbar ( Ctd data to 810 dbar) |
| 7 | P4 | 48°39.03 , 126°40.00 | 07-Jun-10 , 07:18 | Bongo to 250 m |
| 8 | P4 | 48°38.99 , 126°39.99 | 07-Jun-10 , 07:48 | DNA Bongo to 250 m |
| 9 | P4 | 48°38.98 , 126°40.03 | 07-Jun-10 , 08:16 | Rosette (UBC cast) to 1300 dbar ( Ctd data) |
| 10 | P4 | 48°38.98 , 126°39.93 | 07-Jun-10 , 10:02 | UBC in situ pumps to 60 m. |
| 11 | P4 | 48°38.77 , 126°40.24 | 07-Jun-10 , 12:00 | Trace metal pumping to 5 m. |
| 12 | P4 | 48°39.00 , 126°40.01 | 07-Jun-10 , 14:28 | Rosette (Deep cast) to 1250 dbar , ( Ctd data) |
| 13 | P4 | 48°39.01 , 126°40.00 | 07-Jun-10 , 16:51 | Rosette (DMS and ONAr cast) to 301 dbar ( Ctd data) |
| 14 | P5 | 48°41.47 , 127°10.11 | 07-Jun-10 , 21:00 | Rosette to 40 dbar , ( Ctd data to 2005 dbar) |
| 15 | P6 | 48°44.60 , 127°40.07 | 08-Jun-10 , 00:46 | Rosette to 25 dbar , ( Ctd data to 2006 dbar) |
| 16 | P7 | 48°46.64 , 128°09.95 | 08-Jun-10 , 04:21 | Rosette to 25 dbar , ( Ctd data to 2005 dbar) |
| 17 | P8 | 48°48.93 , 128°39.90 | 08-Jun-10 , 08:09 | Bongo tow to 250 m |
| 18 | P8 | 48°48.98 , 128°39.99 | 08-Jun-10 , 08:33 | Rosette to 2000 dbar , ( Ctd data) |
| 19 | P9 | 48°51.39 , 129°10.01 | 08-Jun-10 , 12:17 | Rosette to 34 dbar , ( Ctd data to 2005 dbar) |
| 20 | P10 | 48°53.60 , 129°39.99 | 08-Jun-10 , 15:46 | Rosette to 40 dbar , ( Ctd data to 2005 dbar) |
| 21 | P11 | 48°55.82 , 130°10.05 | 08-Jun-10 , 19:22 | Rosette to 41 dbar , ( Ctd data to 2006 dbar) |
| 22 | P12 | 48°58.12 , 130°39.68 | 08-Jun-10 , 22:55 | Rosette (DMS & ONAr cast) to 1000 dbar ( Ctd data) |
| 24 | P12 | 48°58.21 , 130°39.96 | 09-Jun-10 , 00:17 | Bongo to 250 m |
| 25 | P12 | 48°58.19 , 130°40.00 | 09-Jun-10 , 00:54 | Rosette (Deep cast) to 3275 dbar , ( Ctd data) |
| 27 | P12 | 48°58.20 , 130°40.02 | 09-Jun-10 , 04:45 | Rosette (UBC cast) to 2001 dbar , ( Ctd data) |
| 28 | P13 | 49°02.58 , 131°40.00 | 09-Jun-10 , 14:30 | Rosette to 2000 dbar , ( Ctd data) |
| 29 | P13 | 49°02.58 , 131°40.20 | 09-Jun-10 , 15:58 | Deploy Argo float 4833 |
| 30 | P14 | 49°07.34 , 132°39.87 | 09-Jun-10 , 21:34 | Rosette to 45 dbar , ( Ctd data to 2006 dbar) |
| 31 | P15 | 49°12.11 , 133°39.81 | 10-Jun-10 , 04:19 | Rosette to 50 dbar , ( Ctd data to 2006 dbar) |
| 32 | P16 | 49°16.96 , 134°39.99 | 10-Jun-10 , 10:58 | Bongo to 250 m |
| 33 | P16 | 49°16.99 , 134°39.97 | 10-Jun-10 , 11:23 | Rosette (UBC cast) to 1999 dbar , ( Ctd data) |
| 34 | P16 | 49°17.00 , 134°39.95 | 10-Jun-10 , 13:00 | UBC in situ pumps to 60 m. |
| 35 | P16 | 49°17.01 , 134°39.96 | 10-Jun-10 , 13:57 | Rosette (Deep cast) to 3680 dbar , ( Ctd data) |
| 37 | P16 | 49°17.08 , 134°39.97 | 10-Jun-10 , 18:02 | Rosette (DMS & ONAr cast) to 500 dbar ( Ctd data) |
| 38 | P17 | 49°20.94 , 135°39.82 | 10-Jun-10 , 23:17 | Rosette to 60 dbar , ( Ctd data to 2007 dbar) |
| 39 | P18 | 49°25.88 , 136°39.73 | 11-Jun-10 , 04:32 | Rosette to 45 dbar , ( Ctd data to 2005 dbar) |
| 40 | P19 | 49°30.06 , 137°39.88 | 11-Jun-10 , 10:10 | Rosette to 65 dbar , ( Ctd data to 2006 dbar) |
| 41 | P20 | 49°33.98 , 138°39.99 | 11-Jun-10 , 16:41 | Rosette (Deep cast) to 4022 dbar , ( Ctd data) |
| 42 | P20 | 49°34.00 , 138°40.31 | 11-Jun-10 , 19:38 | Trace metal pumping. |
| 43 | P20 | 49°34.09 , 138°40.74 | 11-Jun-10 , 20:51 | Rosette (DMS & ONAr cast) to 299 dbar ( Ctd data) |
| 44 | P20 | 49°34.18 , 138°40.97 | 11-Jun-10 , 21:37 | Bongo to 250 m |
| 45 | P20 | 49°34.03 , 138°40.03 | 11-Jun-10 , 22:04 | Rosette (UBC & Yiming cast) to 2503 dbar ( Ctd data) |
| 46 | P21 | 49°37.95 , 139°39.94 | 12-Jun-10 , 04:59 | Rosette to 48 dbar , ( Ctd data to 2004 dbar) |
| 47 | P26 | 50°00.01 , 144°59.86 | 13-Jun-10 , 20:25 | Rosette (Th-230) to 201 dbar , ( Ctd data) |
| 48 | P26 | 49°59.99 , 144°59.91 | 13-Jun-10 , 21:26 | Rosette (DMS cast) to 301 dbar , ( Ctd data) |
| 49 | P26 | 50°00.01 , 144°59.86 | 13-Jun-10 , 22:35 | Rosette (Deep cast) to 4316 dbar , ( Ctd data) |
| 49.5 | P26 | 50°00.00 , 145°00.00 | 14-Jun-10 , 11:00 | Trace metal pumping. |
| 50 | P26 | 50°00.03 , 144°59.75 | 14-Jun-10 , 03:01 | Rosette (UBC cast) to 2001 dbar , ( Ctd data) |
| 51 | P26 | 50°00.00 , 144°59.90 | 14-Jun-10 , 07:10 | Rosette (Th-230 cast) to 1600 dbar ( Ctd data) |
| 52 | P26 | 49°59.98 , 144°59.89 | 14-Jun-10 , 08:49 | Rosette (Ba & ONAr cast) to 30 dbar ( Ctd data) |
| 53 | PA004 | 50°02.84 , 144°52.92 | 14-Jun-10 , 23:00 | Deploy PMEL/NOAA PA004 mooring |
| 54 | PA004 | 50°02.85 , 144°52.89 | 14-Jun-10 , 23:45 | Rosette (ONAr and UW) to 500 dbar ( Ctd data) |
| 55 | P26 | 50°00.00 , 145°00.00 | 15-Jun-10 , 01:46 | UBC in situ pumps. |
| 56 | P26 | 49°59.96 , 144°59.56 | 15-Jun-10 , 06:58 | Bongo to 250 m |
| 57 | P26 | 49°59.99 , 145°00.47 | 15-Jun-10 , 09:29 | UBC in situ pumps to 1000 m. |
| 58 | Waverider | 49°59.12 , 145°05.03 | 15-Jun-10 , 21:11 | Deploy APL/UW Waverider mooring |
| 59 | P26 | 50°00.00 , 145°00.00 | 16-Jun-10 , 00:20 | UBC in situ pumps to 400 m. |
| 60 | P26 | 50°00.05 , 144°59.84 | 16-Jun-10 , 05:53 | DNA Bongo to 250 m |
| 61 | P26 | 49°59.98 , 144°59.93 | 16-Jun-10 , 07:43 | UBC in situ pumps to 100 m. |
| 62 | ADCP | 50°06.98 , 144°58.79 | 16-Jun-10 , 16:50 | Recover the ADCP mooring - NP003 (NOAA/PMEL, UW/APL, U Victoria) |
| 63 | PA004 | 50°02.82 , 144°52.69 | 16-Jun-10 , 22:03 | Rosette to 30 dbar , ( Ctd data to 303 dbar) |
| 64 | P26 | 50°00.04 , 144°59.93 | 17-Jun-10 , 00:34 | Multinet to 2000 m |
| 65 | P26 | 49°59.97 , 144°59.97 | 17-Jun-10 , 01:41 | Rosette (Pa cast) to 200 dbar , ( Ctd data) |
| 66 | P26 | 49°59.90 , 144°59.91 | 17-Jun-10 , 02:44 | Multinet to 500 m for François' group |
| 67 | P26 | 49°59.92 , 144°59.98 | 17-Jun-10 , 03:37 | Rosette (Yiming's cast) to 1601 dbar ( Ctd data) |
| 68 | P26 | 49°59.95 , 145°00.00 | 17-Jun-10 , 05:49 | Rosette (Pa cast) to 1600 dbar , ( Ctd data) |
| 69 | P26 | 50°00.00 , 144°59.94 | 17-Jun-10 , 07:37 | Rosette (ONAr & Roger's cast) to 1000 dbar ( Ctd data) |
| 70 | PA003 | 50°07.51 , 144°48.96 | 17-Jun-10 , 12:07 | Rosette (O17 cast) to 200 dbar , ( Ctd data to 300 dbar) |
| 71 | PA003 | 50°07.2 , 144°48.6 | 17-Jun-10 , 17:48 | Recover PMEL/NOAA PA003 mooring |
| 72 | P26 | 50°00.02 , 145°00.01 | 17-Jun-10 , 23:04 | Rosette (ONAr & Roger's cast) to 4315 dbar ( Ctd data) |
| 73 | P26 | 50°00.01 , 144°59.95 | 18-Jun-10 , 02:41 | Multinet to 1600 m for François' group |
| 74 | P26 | 50°00.01 , 144°58.80 | 18-Jun-10 , 03:39 | Deploy UW Iridium float 6400 |
| 75 | P35 | 50°00.00 , 144°18.25 | 18-Jun-10 , 06:28 | Rosette to 41 dbar , ( Ctd data to 2006 dbar) |
| 76 | P25 | 50°00.05 , 143°36.31 | 18-Jun-10 , 10:39 | Rosette to 38 dbar , ( Ctd data to 2005 dbar) |
| 77 | P24 | 49°50.18 , 142°39.97 | 18-Jun-10 , 15:47 | Rosette (Calibration cast) to 2000 dbar ( Ctd data) |
| 78 | P24 | 49°50.14 , 142°39.95 | 18-Jun-10 , 16:59 | Deploy Argo float 4838 |
| 79 | P23 | 49°46.01 , 141°39.91 | 18-Jun-10 , 20:42 | Rosette to 40 dbar , ( Ctd data to 1006 dbar) |
| 80 | P22 | 49°42.01 , 140°40.05 | 19-Jun-10 , 00:54 | Rosette to 41 dbar , ( Ctd data to 1007 dbar) |
Download data for the whole cruise
CTD data
Chemistry (Rosette) data
- Whole cruise
- Deep casts
- DMS casts
- UBC casts
- UBC casts fro Francois' group
- ONAr casts
- Mooring casts
- Argo cast
- Calibration cast
Zooplankton data
- Whole cruise
- P2 Bongo to 105 m
- P4 Bongo to 250 m
- P8 Bongo to 250 m
- P12 Bongo to 250 m
- P16 Bongo to 250 m
- P20 Bongo to 250 m
- P26 Bongo to 250 m
Drifter data
Trace Metal Data
For Trace Metal data please contact Josiane Mélançon
Mooring data
- PMEL/NOAA PA003-PA004 moorings
- APL/UW Waverider mooring
Thermosalinograph data in text format
Surface and Loop data in text format
Profiles of T, S, Sigma-t, DO, and their anomalies
Temperature
Temperature Anomaly

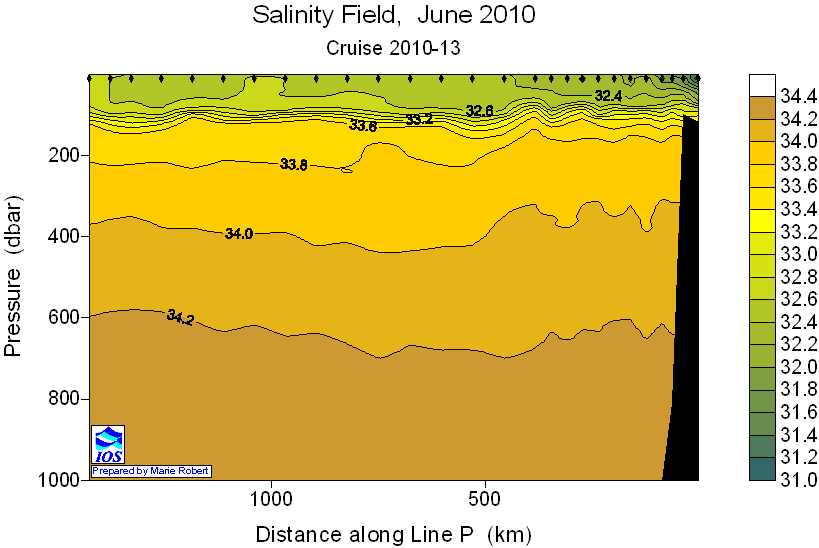

Salinity
Salinity Anomaly

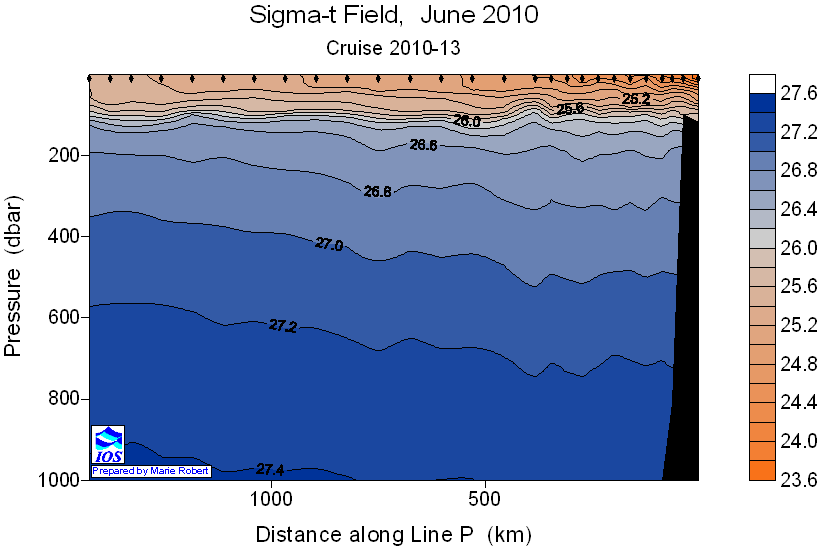

Sigma-t
Sigma-t Anomaly
Dissolved Oxygen
No anomaly profile available
Documents
The following documents are available upon request by contacting Marie Robert.
- Cruise plan (PDF file)
- Post cruise report (PDF file)
- Data processing notes (2010-13-proc.pdf)
- Transmissometer calibration (Transmissometer_1005DR_Corrections.pdf)
- Data Quality flags
- Chlorophyll and Phaeo-pigment precision (2010-13_CHL_precision.pdf)
- Chlorophyll and Phaeo-pigment analysis method (2010-13_CHL_method.pdf)
- Dissolved Oxygen duplicates (2010-13_OXY_duplicates.pdf)
- Nutrients precision (2010-13_NUT_precision.pdf)
- Salinity duplicates (2010-13_SAL_duplicates.pdf)
- DMS Report (2010-13_DMS_Report.pdf)
- Carpenter, J.H. 1965. The Chesapeake Bay Institute Technique for the Winkler Dissolved Oxygen Method. Limmnol. & Oceanogr., 10: 141-143.
- Culberson, C.H. 1991. Dissolved oxygen. In WOCE Operations Manual. Volume 3: The Observational Program. Section 3.1: WOCE Hydrographic Program. Part 3.1.3: WHP Operations and Methods. WHP Office Report WHPO 91-1 / WOCE Report No. 68/91.
- Barwell-Clarke, J. and F. Whitney. 1996. Institute of Ocean Sciences Nutrient Methods and Analysis. Canadian Technical Report of Hydrography and Ocean Sciences, No. 182, 43 pp.
